My bus (1.9 Waterboxer) seems to stall out very quickly after starting, especially if shes at temp, like starting after a quick stop. She'll re start, but stalls out again. Lots of power in the battery, lots of gas (the exaust smells gassy when I start it again and again) she cranks, turns over, and smells gassy, then stalls. any suggestions???
User avatar
david58
Moderator
Posts: 14100
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

Technical Bulletin Group: 24 Number: 24-90 T01 Date: May 31, 1990 Subject: Rough Idle, Engine Stalls - Tow in Model(s): 1983-1990 Model Years The clamp for the air intake boot to air flow meter/throttle body may yield tension and could cause a vacuum leak. This may create a lean running condition resulting in the engine to idle rough and in severe cases stall while idling. Installation of Boot Clamp Part Number 191 129 647 will correct this condition.
Piper
Posts: 172
Joined: Tue Apr 17, 2007 9:03 pm

Post by Piper »

wow, someone has responded BEFORE the mechanic! I love this site! I'll have that checked, thanks a lot!
User avatar
david58
Moderator
Posts: 14100
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

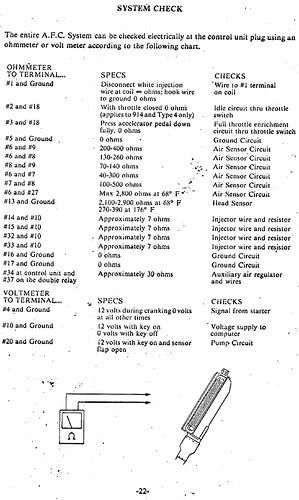

Type II FI diagnostic chart

This may help also.
Flagbuggy
Posts: 248
Joined: Thu Jun 21, 2007 11:17 am

Post by Flagbuggy »

Hi DAvid

How do I get that page bigger to read it is it possible to mail it to me bugger{at}telkomsa.net

Thanks
Pierre
2.4 Type 4 Turbo Flag buggy 11.1 sec
13BT 240KW Cabriolet Bug
66 Freurwagon Long term project
66 Squareback Sunroof Project
2000 NB VR6 Turbo Project
84 DC 1.9WBX
86 Kombi 2.1 WBX
User avatar
david58
Moderator
Posts: 14100
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

I tried to make it bigger in paint no luck.
User avatar
david58
Moderator
Posts: 14100
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

Bosch FI manual online
www.angelfire.com/wa2/fits/index.html
The page loads slow but good info on it.
Piper
Posts: 172
Joined: Tue Apr 17, 2007 9:03 pm

Post by Piper »

Thanks Davidbug, you hit the nail on the head. the part is like $150, plus they want to do plugs, wires, and the rotor (things I was planning on doing anyway, and since it's getting cold I probably won't do it myself). Than ks for your help bud
User avatar
david58
Moderator
Posts: 14100
Joined: Sun Oct 23, 2005 6:14 pm

Post by david58 »

Piper wrote:Thanks Davidbug, you hit the nail on the head. the part is like $150, plus they want to do plugs, wires, and the rotor (things I was planning on doing anyway, and since it's getting cold I probably won't do it myself). Than ks for your help bud
:shock: I wish that 1989 Corvette I have been working on was that easy. :lol: All 8 injectors clogged up completely. Water and rust..........
Piper
Posts: 172
Joined: Tue Apr 17, 2007 9:03 pm

Post by Piper »

OUCH! Sounds fun..but when you're done at least you can go really really fast! Ofcourse you can't put a double bed in a Corvette :wink:
