Round air filter....Part number?

raygreenwood · Post by **raygreenwood** » Tue Oct 17, 2006 3:24 pm

The fixed orifice is drastically better than the stock PCV. The pCV valve came on all injected 1.7's in 411/412 and 914.
It is a vacuum leak pure and simple....and it has no dedicated timing that is controlled by the ECU. It is a major fuel mixture upset any time it opens at low rpm. The only reason it is almost not noticable on the injected engines as they came from tha factory....is that the factory state of tune...as compared to what the D-jet is capable of when you fix this fluctuating vacuum leak....was abysmal.
People think its normal for D-jet to idle rich and have flat spots off the line . It is not.
The stock PCV is also responsible for a fair portion of the "bucking syndrome".....as it causes rapid flexing of the copper plate againts the WOT stop plug...giving untimed enrichments.

The flow through method that VW put into these is superb. littleelse beats it. It allows theheads to run at least 15* cooler from what I have found.
The filtered air comes from teh air cleaner, through teh flame trap splitter....through the rocker boxes where it draws oil mist back into the crankcase as well as gasses. It then is pulled through the crankacse...through the "Z" baffel....through the oil breather and PCV to the plenum. Thsi is a very high state of vacuum and airflow in general.
The oil speration method from the PCV gasses is superb. Ray

SureFit Travis · Post by **SureFit Travis** » Wed Oct 18, 2006 6:49 pm

First off, I have to say 'thanks' for everyone sharing their knowledge with me. Thank you Albert, for your tips on finding type-4 parts.......Auto Atlanta does have the PCV valves in stock ($15 each).

I'm most surprised (pleasantly) on your findings, Ray, of the lower head temperatures with this crankcase ventilation system, and now realize the multiple benefits of keeping it.....along with the improvements. I almost thought of simplifying it, but have now opted not to.

Thanks for your tips, 'Wildthings,' on your ventilation tips for your van. I too own a type-4 powered Westfalia, and although the engine is out of it right now for a rebuild, I will take your suggestions into consideration for venting this crankcase as well. If you don't mind, send me an e-mail or PM sometime to explain this deeper for me. How about photos?

Thanks again,

Travis

SureFit Travis · Post by **SureFit Travis** » Mon Oct 30, 2006 11:06 pm

raygreenwood wrote:Dang...i wish I had known you needed those hose part #'s yesterday . I came across the paper and foil hose part #'s in my book. I had peeled the part# stickers off and stuck them in teh book last I bought them. I will drop in tommorrow. Ray

Any chances of finding time to look this up? Or suggestions where to find 'em?

Thanks!

Travis

albert · Post by **albert** » Tue Oct 31, 2006 4:18 am

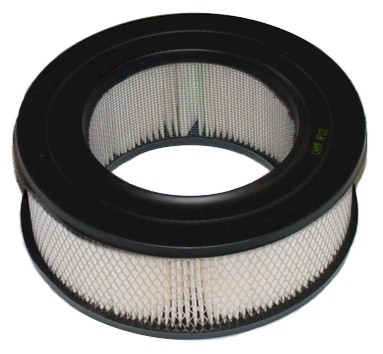

hi travis, look on your plstic cover you have a ,,no,, 022,129,620 you can find this parts no. on the air filter , look bughouse.com ,,, 15,$

Bill K. · Post by **Bill K.** » Tue Jun 19, 2007 9:26 pm

Bughaus has the round air filter on backorder with no ETA...

I've checked all over the net for alternatives, but no luck. Any known sources for 022 129 620 to fit a '73 1.7L 412?

raygreenwood · Post by **raygreenwood** » Wed Jun 20, 2007 8:02 am

At one time....I had a part # for a K&N that was a dang close fit with a piece of rubber shim. Measure everything and then look on their web site or in their catalog to see what they have. Ray

albert · Post by **albert** » Wed Jun 20, 2007 3:21 pm

oh,,, bill,k,,, make attention with the filter ,,, bughouse sale one air filter , they said he fit for the 412 but i have one with me ( not from bughouse ) and the cover d,t close tite , and we have a air leak onder the cover ,,, look for that ,,, it is not expensive but if you want the original from bosh look in the ,,,,pellican porsche parts ,,,porsche 914 -70-73 ,,,1700 cc,, or you can look in ,,,autoattlenta,,, porsche parts ,,, for same model ,,, more expensive 20.$ but original to vw ,,,

Bill K. · Post by **Bill K.** » Wed Jun 20, 2007 9:21 pm

I tried Pelican - NLA. AtlantaAuto shipped me a Napa Gold 6036 - wrong size. No luck other places as well.

Returning to K&N web site per Ray's suggestion, I found the "find by dimension" tool. My old filter measures about 3.22" tall on ID, 2.94" tall on OD. The triangular sectioned boss on the ID ends of the filter do the sealing (3.22"). The top filter housing has inside lip of 4.87" OD. E-3218 looks like the ticket - 3.25" tall with 4.875" ID.

http://store.knfilters.com/search/produ ... rod=E-3218
http://store.summitracing.com/partdetai ... knn-e-3218

albert · Post by **albert** » Thu Jun 21, 2007 3:01 am

bill, i can send you the exact dimention for this filter if you want ,, i have the same ,,022-129-620 alb.

Bill K. · Post by **Bill K.** » Thu Jun 21, 2007 6:57 am

albert wrote:bill, i can send you the exact dimention for this filter if you want ,, i have the same ,,022-129-620 alb.

Please do. The green wagon I bought recently came without a filter

All I have is a filter half eaten by rats from a parts car.

raygreenwood · Post by **raygreenwood** » Thu Jun 21, 2007 8:09 am

One note, about what Albert is saying with the filter fit.
Many aftermarket filters...especially the Fram...have a rubber/plastisol ring on the top and bottom that is designed to crush down. It will not fit properly. The rubber is too hard. It not only leaves a gap around teh outside edge of the two plastic halves...it props them apart under too much tension. When the plastic gets hot....it will crack. Been there...done that.
Also be sure that any aftermarket filter you use is not too short. I have had some in the past that I had to build up about 1/8" with sheet rubber. The K&N is probably the answer. Ray

albert · Post by **albert** » Thu Jun 21, 2007 4:49 pm

bill, i have on my 412-73 round air filter from mann pn ,, C2180,,he fit no.1,, look on ebay or samba , and look in the type3 on samba or porshe parts

SureFit Travis · Post by **SureFit Travis** » Sat Jun 23, 2007 5:04 pm

Hey Bill (and the gang),

I bought a packaged lot of filters off of eBay last year, and I think there was nearly a dozen in the box. I will have a look later to confirm this. I'm pretty sure I'll never need this many....

Let me know how you make out with your other sources, and perhaps I can mail you one of these if you don't have any success.

Travis

SureFit Travis · Post by **SureFit Travis** » Sat Jun 23, 2007 5:08 pm

Oh, and one more thing.....

Did anyone ever find a part number and a place to find those paper/foil hoses from the heater boxes to the gas heater over the transaxle? I've checked some autoparts places here, and no one has anything quite as big in diameter.

Travis

Bill K. · Post by **Bill K.** » Sun Jun 24, 2007 8:14 am

SureFit Travis wrote:Hey Bill (and the gang),

I bought a packaged lot of filters off of eBay last year, and I think there was nearly a dozen in the box. I will have a look later to confirm this. I'm pretty sure I'll never need this many....

Let me know how you make out with your other sources, and perhaps I can mail you one of these if you don't have any success.

Travis

thanks Travis, I may take you up on your kind offer. see you around the NW, Bill
