Who can tell me about these carbs!!

Big-Osh · Post by **Big-Osh** » Fri Jun 12, 2009 5:22 pm

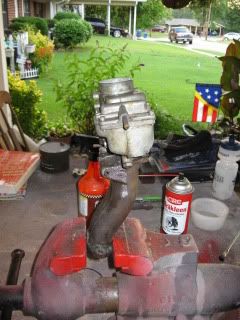

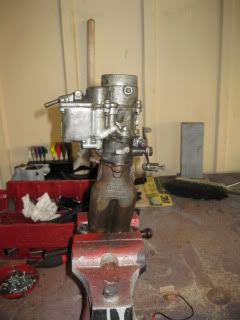

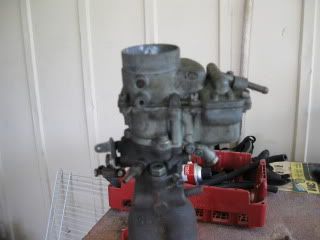

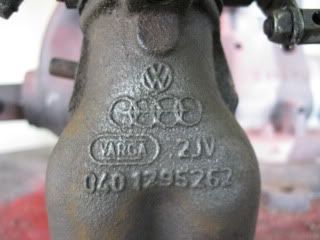

I have a set of carbs I know nothing about. They have the Weber w marking on the carb it self but nothing else. The manifold has several markings. ( VW, OOOO, VARG, 2?V and 0401295262). Thanks for your time and help.
Big Osh.

Post by **david58** » Fri Jun 12, 2009 6:00 pm

kinda look like Kads wish the pics were bigger so I could see them better.

Post by **david58** » Fri Jun 12, 2009 6:49 pm

sideshow · Post by **sideshow** » Fri Jun 12, 2009 7:18 pm

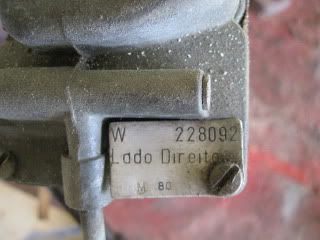

I'm betting that the "W" logo mean weber, like brazillian "baby webers,"
DFV 228

http://www.shoptalkforums.com/viewtopic.php?t=57082

http://www.shoptalkforums.com/viewtopic.php?t=87234

Post by **david58** » Fri Jun 12, 2009 7:31 pm

I missed the W logo in his post.

Big-Osh · Post by **Big-Osh** » Fri Jun 12, 2009 7:43 pm

I was looking at the parts diagram. It is close to what I have not exact. My carb gas lever is part of the carb. Not like in the pic. I will get better pics tomorrow. Thanks for your time and help. What might they be worth?

Post by **david58** » Fri Jun 12, 2009 7:53 pm

Big-Osh wrote:I was looking at the parts diagram. It is close to what I have not exact. My carb gas lever is part of the carb. Not like in the pic. I will get better pics tomorrow. Thanks for your time and help. What might they be worth?

I am interested in them for the intakes mine are too short name your price.

Big-Osh · Post by **Big-Osh** » Sat Jun 13, 2009 11:16 am

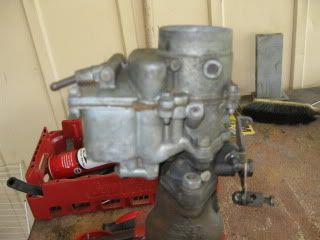

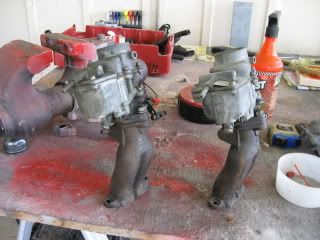

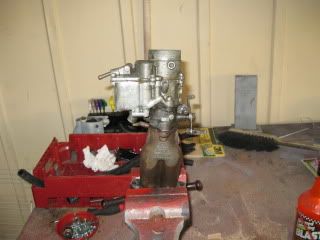

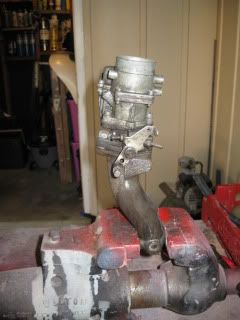

Here are some more pics. I cleaned them up a little more. The carbs need to be rebuilt.

Thanks for your time and help.

fusername · Post by **fusername** » Sat Jun 13, 2009 7:42 pm

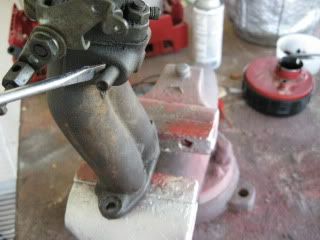

the intakes look like they belong on whatever motor came with dual kadron/solex carbs due ot the chambe below the carb, so they would mate up with those carbs fine, although I see no port for an equalizer tube. is there a port or hole about 3/8 to half inch in diamter on them somewherE?

Jason C · Post by **Jason C** » Sat Jun 13, 2009 8:50 pm

fusername wrote: although I see no port for an equalizer tube. is there a port or hole about 3/8 to half inch in diamter on them somewherE?

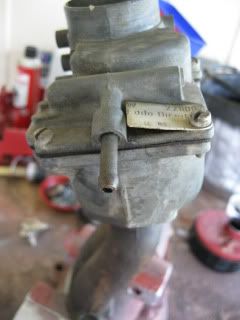

Last pic on the left one, left side below the carb there is a hose barb sticking out.

fusername · Post by **fusername** » Sat Jun 13, 2009 9:52 pm

even with you saying its there I can't see it.

itty bitty, but better than nothign I guess

Big-Osh · Post by **Big-Osh** » Sun Jun 14, 2009 6:50 am

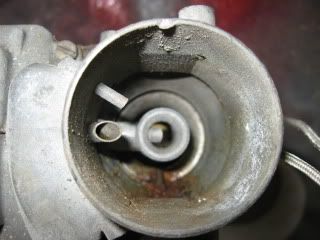

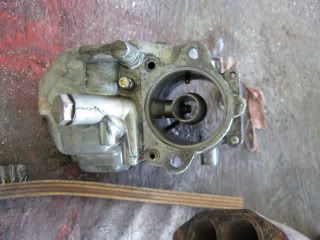

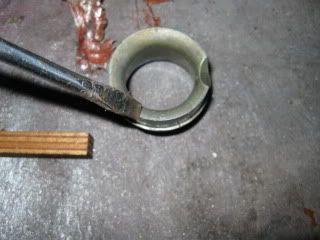

I took the carbs to work and put them in a tank of PD-680. It cleaned them up a little better. I was able to get the one apart. I took out a round piece that fits between the carb bowl and the butterfly valve. This piece is marked with a 28 which I guess it means the size of the carb. When I first looked at the carbs I thought there was only two parts. I was wrong, there is three. Here are a few more pics.

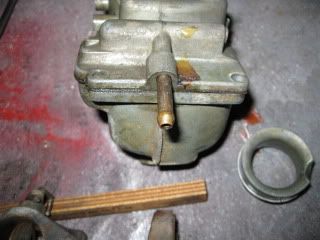

The last pic is of the bottom of the carb with out the little circle piece. Thanks for your time and help.

fusername · Post by **fusername** » Sun Jun 14, 2009 7:25 am

I do belive teh little ring is called a venturi or venturi ring, I could be mistaken. You can go bigger or smaller to match the motor it is going on.

Big-Osh · Post by **Big-Osh** » Sun Jun 14, 2009 7:39 am

I was going to put them on my current project , but decided to go with a single web 40 instead. I was cleaning them up to turn them into book end. I have been asked what I want for them. I just not sure what to ask for them. They need to be rebuilt and personally if some one could use them I would be happier. Thnaks for your time and help.

iniguez2000 · Post by **iniguez2000** » Wed Jun 24, 2009 1:04 pm

I think that is a Mexican carburetor, I am from Mex, are you having problems to install it ??
